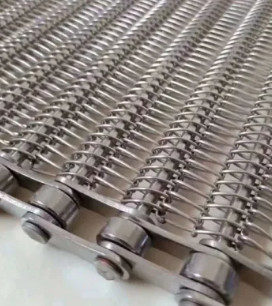

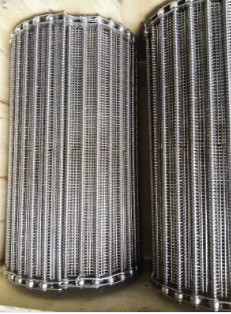

metal mesh belt s a variation of balanced weave belt,right hand and left hand weave forms a very dense and smooth belt with most rod straight and some crimped.
2. application of the compound balanced wire belt
the belt is perfect to convey small products because of high dense mesh,such as nuts,bolts,screw,
nail,cookies,chemical grain,etc.
3. specifications for the compound balanced wire belt
3.1spiral wire diameter:0.8mm,1.0mm,1.2mm,1.4mm,1.6mm,1.8mm,2.0mm,2.3mm,2.5mm,
2.6mm,2.8mm,3.0mm
3.2 rod wire diameter:1.2mm,1.4mm,1.6mm,1.8mm,2.0mm,2.3mm,2.5mm,2.6mm,3.0mm
3.3 spiral pitch:3.3mm to 11.7mm
3.4 rod pitch:2.7mm to 6.5mm.
4. features of the wire mesh belt:
a: the sprocket drive ensures postive and stable running.
b: the rotation diameter is small , so that smooth products transfer is ensured .
c: easy washing is ensured .
d: because of large open area , high air permeablity and dehydration capacity are ensured .
e: stable construction forstraight belt running.
f: shrinkage of belt width under high load and high temperature is very little.
g: because of unique structure , belts have high allowable tension.
| size |
material |
mesh size |
wire(mm) |
| length 20m x wid 580/780mm |
stainless |
15*32.4 |
2.4*3.2 |
| length 20m x wid 380/410/980mm |
stainless |
15*32.4 |
2.4*3.2 |
| length 20m x width 580/780mm |
stainless |
9.4*20.8 |
1.6*2 |
| length 20m x 380/410/980 |
stainless |
9.4*20.8 |
1.6*2 |
