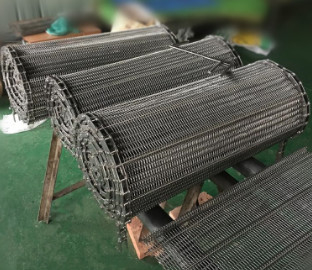

SUS302 Stainless Steel woven Spiral Freezer Belt Wire Mesh

Large Image : SUS302 Stainless Steel woven Spiral Freezer Belt Wire Mesh

Product Details:

Place of Origin:	yangzhou jiangsu china
Brand Name:	xinlihua

Payment & Shipping Terms:

Minimum Order Quantity:	5 meters
Price:	$5.00 - $200.00/ Piece\|10 Piece/Pieces(Min. Order)
Packaging Details:	All products are packed in cylindrical shape, length and width are marked.
Payment Terms:	T/T
Supply Ability:	To be negotiated

Contact Now

SUS302 Stainless Steel woven Spiral Freezer Belt Wire Mesh

Description

Material:	Stainless Steel Wire, 304	Market:	Europe, Australia, Asia, Afirca Etc, America
Packing:	Paper Tube Inside+ Wodden Box +plastic Bag +	Applicable Industries:	Food & Beverage Factory, Food Shop, Construction Works ,
Place Of Origin:	Jiangsu, China	Width Or Diameter:	Customized
Marketing Type:	New	Voltage:	Other
Core Components:	Pressure Vessel	Belt Material:	Steel Wire
High Light:	SUS302 Spiral Freezer Belt , Spiral Freezer Belt Mesh , SUS302 stainless woven wire mesh

Stainless steel Conveyor Belt Mesh

Material: Stainless Steel Wire Mesh from first class stainless steel wire materials in SUS302, 304, 316, 304L, 316L.

Typical Weaving Patterns for Stainless Steel Wire Mesh: Welded Mesh, Crimped mesh, Plain weave, twill weave, dutch weave.

General Use: Stainless steel wire mesh, with its excellent resistance against acid, alkali, heat and corrosion, find extensive uses in processing of oils, chemicals, food, pharmaceuticals, also sorting and screening of solid, liquid and gas in mine, metallurgy, airspace, machine making, etc.

Specification List of Stainless Steel Wire Mesh

Mesh/Inch

Wire Gauge(SWG)

Aperture in mm

3mesh x 3mesh

6.27

4mesh x 4mesh

4.27

5mesh x 5mesh

3.86

6mesh x 6mesh

3.04

8mesh x 8mesh

2.26

10mesh x 10mesh

1.63

20mesh x 20mesh

0.95

30mesh x 30mesh

0.61

40mesh x 40mesh

0.44

50mesh x 50mesh

0.36

60mesh x 60mesh

0.30

80mesh x 80mesh

0.21

100mesh x 100mesh

0.172

120mesh x 120mesh

0.13

150mesh x 150mesh

0.108

160mesh x 160mesh

0.097

180mesh x 180mesh

0.09

200mesh x 200mesh

0.077

250mesh x 250mesh

0.061

280mesh x 280mesh

0.060

300mesh x 300mesh

0.054

350mesh x 350mesh

0.042

400mesh x 400mesh

0.0385

500mesh x 500mesh

0.0273

Roll width: 2"-8"

Chemical composition of stainless steel wire:

AISI Grade	Chemical Composition(%)
	C	Si	Mn	P	S	Ni	Cr	Mo
304	=0.08	=1.00	=2.00	=0.045	=0.030	8.00~10.50	18.00~20.00	-
304H	>0.08	=1.00	=2.00	=0.045	=0.030	8.00~10.50	18.00~20.00	-
304L	=0.030	=1.00	=2.00	=0.045	=0.030	9.00~13.50	18.00~20.00	-
316	=0.045	=1.00	=2.00	=0.045	=0.030	10.00~14.00	10.00~18.00	2.00~3.00
316L	=0.030	=1.00	=2.00	=0.045	=0.030	12.00~15.00	16.00~18.00	2.00~3.00
430	=0.12	=0.75	=1.00	=0.040	=0.030	=0.60	16.00~18.00	-
430A	=0.06	=0.50	=0.50	=0.030	=0.50	=0.25	14.00~17.00	-

Sizes of Stainless Steel Wire:

Wire Diameter(mm)	Tolerance(mm)	Max. Deviation Tolerance(mm)
0.020-0.049	+0.002 -0.001	0.001
0.050-0.074	0.002	0.002
0.075-0.089	0.002	0.002
0.090-0.109	+0.003 -0.002	0.002
0.110-0.169	0.003	0.003
0.170-0.184	0.004	0.004
0.185-0.199	0.004	0.004
0.200-0.299	0.005	0.005
0.300-0.310	0.006	0.006
0.320-0.499	0.006	0.006

We can also supply other specifications according to the customer"s requirement

Company brief

SUS302 Stainless Steel woven Spiral Freezer Belt Wire Mesh 0

So far, the total area of our main plant and branch plant has reached 10000m2.Our conveying equipment and accessories are widely used in food processing, leisure food, baking, heat treatment, forging, casting, ceramics, glass, automobile and other industries.

We are willing to develop together with you, welcome your inquire.

Stainless Steel Wire Mesh Conveyor Belts Biscuit Baking Belt Rolled Baking Oven Belts

SUS302 Stainless Steel woven Spiral Freezer Belt Wire Mesh 2

Product Line SUS302 Stainless Steel woven Spiral Freezer Belt Wire Mesh 3

Packing & Delivery

FAQ

Corrosion and high temperature resistance 304 Stainless steel wire mesh ladder chain conveyor belt

After-sale service process:.

1. The contact must be numbered and kept in the user's file.

2. To assist customers in designing their product and send free sample.

3. To direct installation equipment free of charge and will be responsible commissioning

4. The company shall make regular inspection and maintenance of user’s equipment

After-sale service guaranty:

1. The host machine of the equipment enjoy 1 years free warranty and lifetime maintenance.

2. The spare parts of the equipment are made by well-known manufacturers in the trade , ensuing the servuce life of the spare parts .

Packing:

1. All products are packed in cylindrical shape, length and width are marked.
2. Standard plywood wooden box production surface avoid broken.
3. According to customer requirements brush marks.

Q1: Can you arrange the shipping to our country?
A: Yes, let me know which port you prefer in our country, we can arrange the shipping for you.

Q2: Do you offer customized product service?
A: Yes, customize product is available in our factory. Send your design pictures to us, we talk about it with our professional design

Q3: Are you trading company or factory?
A: We are factory. Our factory located in YangZhou city . Welcome to visit us. We are always ready for you. I firmly believe you will understand our product better after visiting.

Q4: how to buy your products?
A: this is a good question :
(1)first please show us detailed size that you need,
(2)then let us show drawing to you for your confirmation ,
(3)after you confirmed the drawing please pay for 30% deposity by TT,
(4)we will produce for you ,after we finished we will take live photo for your checking,
(5)Please pay for 70%balance payment after you checked the live photos.
(6)then we will arrange shipment for you ,we can do FOB or CNF(CFR) for you .
(7)You will receive the good at your nearest sea port .
(8)You can ask the logistic send the cargo to your home,end.
