Containuous Furnace Herringbone Conveyor Belt Mesh

I'm Online Chat Now

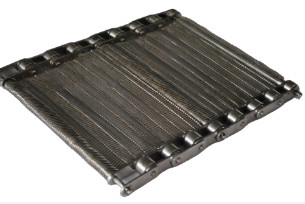

Containuous Furnace Herringbone Conveyor Belt Mesh

Containuous Furnace Herringbone Conveyor Belt Mesh
Containuous Furnace Herringbone Conveyor Belt Mesh Containuous Furnace Herringbone Conveyor Belt Mesh Containuous Furnace Herringbone Conveyor Belt Mesh

Large Image :  Containuous Furnace Herringbone Conveyor Belt Mesh

Product Details:
Place of Origin: yangzhou jiangsu china
Brand Name: xinlihua
Payment & Shipping Terms:
Minimum Order Quantity: 5 meters
Price: 5 - 99 Meters $60.00, 100 - 499 Meters $30.00, >=500 Meters $10.00
Packaging Details: All products are packed in cylindrical shape, length and width are marked.
Payment Terms: T/T
Supply Ability: To be negotiated

Containuous Furnace Herringbone Conveyor Belt Mesh

Description
Material: Stainless Steel Wire, 304 Market: Europe, Australia, Asia, Afirca Etc, America
Packing: Paper Tube Inside+ Wodden Box +plastic Bag + Applicable Industries: Food & Beverage Factory, Food Shop, Construction Works ,
Place Of Origin: Jiangsu, China Width Or Diameter: Customized
Marketing Type: New Voltage: Other
Core Components: Pressure Vessel Belt Material: Steel Wire
High Light:

Furnace Herringbone Conveyor Belt

,

Containuous Herringbone Conveyor Belt

,

Containuous furnace conveyor belt

Products Description



Metal Stainless Steel Chain Link Balance Spiral Wire Conveyor Mesh Belt for containuous quenching furnace oven tunnel dryer
Spiral wire link mesh belts, also referred to as balanced weave belts,Balance weave is an economical, general use belt for medium load applications from 40 - 1500 degrees F. It is the most commonly used wire mesh conveyor belt worldwide including many food processing.Ranging from super strong for conveying heavy loads over large widths or conveying very hot products to very dense weaves for small products, unsorted goods or products requiring stable support applications (from draining to cooling) as well as industries ranging from ceramic, glass and metalworking. For medium temperature and load conditions, Spiral wire link mesh belts are very economical and will fit well into any company's budgets .
material
stainless steel 304 316 316 L galvanized, steel, chrome steel, mild steel, nickel steel
wire diameter
1.0 mm,1.2 mm, 1.4 mm, 1.6 mm,1.8 mm, 2.0 mm,..... 3.0mm
pitch
3.0 to 30 mm
mesh width and length
as per order

the following are four types of stainless steel spiral wire mesh belt

1. spiral wire mesh belt without chain

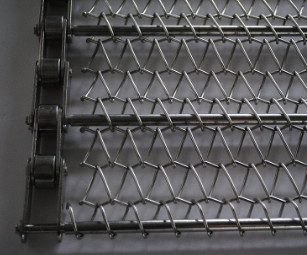

2. spiral wire balance weave wire mesh with chain
3. spiral wire mesh with U shape chain for freezing or cooling
4. double spiral wire mesh belt
Company brief

Containuous Furnace Herringbone Conveyor Belt Mesh 0

So far, the total area of our main plant and branch plant has reached 10000m2.Our conveying equipment and accessories are widely used in food processing, leisure food, baking, heat treatment, forging, casting, ceramics, glass, automobile and other industries.

We are willing to develop together with you, welcome your inquire.

Containuous Furnace Herringbone Conveyor Belt Mesh 1
Containuous Furnace Herringbone Conveyor Belt Mesh 2
Containuous Furnace Herringbone Conveyor Belt Mesh 3
Containuous Furnace Herringbone Conveyor Belt Mesh 4

edge type of stainless steel spiral conveyor mesh belt

1.welded edge. 2. bending edge
3.hook edge
Containuous Furnace Herringbone Conveyor Belt Mesh 5

Containuous Furnace Herringbone Conveyor Belt Mesh 6

following is drawing of spiral wire mesh belt with chain

once datas of the following are confirmed ,best offer will be supplied
If you don`t know datas on it, please tell us its loading weight per meter,material size on the belt, advice will be give to you. welcome send us inquiry!
Containuous Furnace Herringbone Conveyor Belt Mesh 7
Product Feature
Alternating left and right hand spiral coils that do not interconnect with each other. Excellent tracking properties. positive drive and chain edge drive. Chain edge for heavy load applications. Straight-running and true.even when configured with a small radius — have a perfectly round end allowing a good product transfer to the following stage of the process. Wide variety of mesh specifications for individual application. Cross-flights and side plates available,the pins can be bent upwards in some belt types of the spiral wirelink belts which will create a standing edge.
install easily with simple maintenance
material name
Maximum Operating Temperature °C
stainless steel 304
750
stainless steel 316
800
stainless steel 316L
800
stainless steel 314
1120
80/20 Nickel Chrome
1120
Inconel 601
1150
carbon steel
550



Related Products

Stainless Steel Wire Mesh Conveyor Belts Biscuit Baking Belt Rolled Baking Oven Belts



Containuous Furnace Herringbone Conveyor Belt Mesh 9

Product LineContainuous Furnace Herringbone Conveyor Belt Mesh 10

Packing & Delivery
Containuous Furnace Herringbone Conveyor Belt Mesh 11
Containuous Furnace Herringbone Conveyor Belt Mesh 12
Containuous Furnace Herringbone Conveyor Belt Mesh 13
FAQ

Corrosion and high temperature resistance 304 Stainless steel wire mesh ladder chain conveyor belt



After-sale service process:.

1. The contact must be numbered and kept in the user's file.

2. To assist customers in designing their product and send free sample.

3. To direct installation equipment free of charge and will be responsible commissioning

4. The company shall make regular inspection and maintenance of user’s equipment

After-sale service guaranty:

1. The host machine of the equipment enjoy 1 years free warranty and lifetime maintenance.

2. The spare parts of the equipment are made by well-known manufacturers in the trade , ensuing the servuce life of the spare parts .

Packing:

1. All products are packed in cylindrical shape, length and width are marked.
2. Standard plywood wooden box production surface avoid broken.
3. According to customer requirements brush marks.

Q1: Can you arrange the shipping to our country?
A: Yes, let me know which port you prefer in our country, we can arrange the shipping for you.
Q2: Do you offer customized product service?
A: Yes, customize product is available in our factory. Send your design pictures to us, we talk about it with our professional design
Q3: Are you trading company or factory?
A: We are factory. Our factory located in YangZhou city . Welcome to visit us. We are always ready for you. I firmly believe you will understand our product better after visiting.
Q4: how to buy your products?
A: this is a good question :
(1)first please show us detailed size that you need,
(2)then let us show drawing to you for your confirmation ,
(3)after you confirmed the drawing please pay for 30% deposity by TT,
(4)we will produce for you ,after we finished we will take live photo for your checking,
(5)Please pay for 70%balance payment after you checked the live photos.
(6)then we will arrange shipment for you ,we can do FOB or CNF(CFR) for you .
(7)You will receive the good at your nearest sea port .
(8)You can ask the logistic send the cargo to your home,end.



Our Services

After-sale service process:.

1. The contact must be numbered and kept in the user's file.

2. To assist customers in designing their product and send free sample.

3. To direct installation equipment free of charge and will be responsible commissioning

4. The company shall make regular inspection and maintenance of user’s equipment
