Product Details:
|
| Material: | Stainless Steel Wire, 304 | Market: | Europe, Australia, Asia, Afirca Etc, America |
|---|---|---|---|
| Packing: | Paper Tube Inside+ Wodden Box +plastic Bag + | Applicable Industries: | Food & Beverage Factory, Food Shop, Construction Works , |
| Place Of Origin: | Jiangsu, China | Width Or Diameter: | Customized |
| Marketing Type: | New | Voltage: | Other |
| Core Components: | Pressure Vessel | Belt Material: | Steel Wire |
| High Light: | OEM stainless steel wire belt,honeycomb stainless steel wire belt,OEM honeycomb conveyor belt |
||
Honeycomb conveyor belt, also called flat wire conveyor belt. The honeycomb belt is constructed of cross rods and a flat metal strip. At the sides of the belt the cross rods have a welded ring (welded edges). In a number of dimensions it is possible to give the sides of the belt a clinged edge. There are a number of predefined belt executions with different pitches and material dimensions. The belt can also be provided with side plates or flights. The flat wires are arranged in the form of lattice and jointed with the straight round rods. The material of flat wire belt are commonly high carbon steel, galvanized steel, stainless steel and other materials.
Honeycomb conveyor belt is a perfect products with both durability and suitable open area. It is temperature resistance, which is popular in the baking conveying applications. The flat surface of honeycomb conveyor belt supplies stable conveying during using. Honeycomb belts are used in production processes with temperatures of -30ºC up to +400ºC in food and other industries.
1) Edge Availability
2) Material Availability
The Honeycomb belts is standard made of mild steel, galvanised mild steel, stainless steel AISI 304 and AISI 316.The belt needs minimal maintenance and will have a working life of many years, if used well.
3) Specifications
| Specifications of Honeycomb conveyor belt | ||||
| Item No. | Cross Rod Pitch (mm) | Nominal Lateral Pitch (mm) | Flat Strip (mm) | Cross Rod (mm) |
| H CB01 | 13.7 | 14.6 | 10x1 | 3 |
| H CB02 | 26.2 | 15.55 | 12x1.2 | 4 |
| H CB03 | 27.4 | 15.7 | 9.5x1.25 | 3 |
| H CB04 | 27.4 | 24.7 | 9.5x1.25 | 3 |
| H CB05 | 28.6 | 15 | 9.5x1.25 | 3 |
| H CB06 | 28.6 | 26.25 | 9.5x1.25 | 3 |
| H CB07 | 28.4 | 22.5 | 15x1.2 | 4 |
| NOTE: Custom specification is available if you can't find the suitable size. | ||||
3. Honeycomb Conveyor Belts Flat Wire Conveyor Belts Features
♦ Belt edge has no catch points, no welds
♦ Twice the life of competitive belts
♦ Installation requires no special tools
♦ Positive driven for excellent belt tracking
♦ Up to 81% open area for excellent flow through
♦ Allows for tight transfers
♦ Available up to 150 inches wide
♦ High strength-to-weight ratio
♦ Welded button edge or clinched edge
♦ Flat carrying surface
♦ Easy to clean and to install
♦ Easily joined
♦ Strong edge reduces snagging or catching on conveyor protrusions
4. Honeycomb Conveyor Belts Flat Wire Conveyor Belts Applications
The Honeycomb belts, with high temperature resistance, large open area, flat surface is widely used in the following applications.
♦ Transport systems
♦ Heating systems
♦ Baking systems
♦ Cooling systems
♦ Washing systems
♦ Freezing systems
♦ Packaging systems
♦ Sorting systems
♦ Drying systems
♦ Product handling systems
♦ Sieving systems
♦ Bread production systems
♦ Waste handling systems
So far, the total area of our main plant and branch plant has reached 10000m2.Our conveying equipment and accessories are widely used in food processing, leisure food, baking, heat treatment, forging, casting, ceramics, glass, automobile and other industries.
We are willing to develop together with you, welcome your inquire.

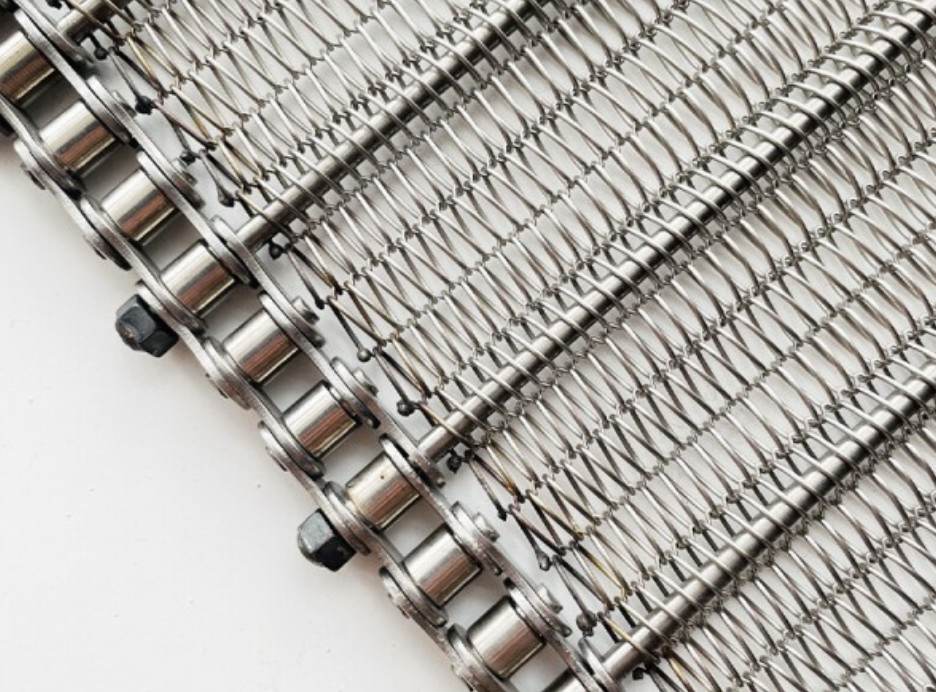

Pro Quality of Stainless Steel Chain Wire Mesh Belt Cookies Conveyor Belt :
Stainless steel wire mesh conveyor belt is most commonly used wire mesh belt for conveyor. Conveyor belt is used in many food processing applications and also in some industrial range, such as in glass, ceramic and metal working. We can customized as per the customer's request.
Stainless steel mesh belt conveyor aslo called stainless steel conveyor, stainless steel mesh belt, stainless steel conveyors, stainless steel belts, stainless steel Mobility with metal spiral mesh belt, metal belt turn.
Material:High quality stainless steel
Type:Herringbone mesh belt B-shaped belt, diamond belt, horseshoe belt (long urban belt), chain conveyors, belt-shaped glasses, chain plate belt, ball-type mesh belt, chain conveyor metal hook , punching metal conveyor belts, etc.
Product Line
|
After-sale service process:. 1. The contact must be numbered and kept in the user's file. 2. To assist customers in designing their product and send free sample. 3. To direct installation equipment free of charge and will be responsible commissioning 4. The company shall make regular inspection and maintenance of user’s equipment |
|
After-sale service guaranty: 1. The host machine of the equipment enjoy 1 years free warranty and lifetime maintenance. 2. The spare parts of the equipment are made by well-known manufacturers in the trade , ensuing the servuce life of the spare parts . |
|
Packing: 1. All products are packed in cylindrical shape, length and width are marked. |
| Q1: Can you arrange the shipping to our country? A: Yes, let me know which port you prefer in our country, we can arrange the shipping for you. |
| Q2: Do you offer customized product service? A: Yes, customize product is available in our factory. Send your design pictures to us, we talk about it with our professional design |
| Q3: Are you trading company or factory? A: We are factory. Our factory located in YangZhou city . Welcome to visit us. We are always ready for you. I firmly believe you will understand our product better after visiting. |
| Q4: how to buy your products? A: this is a good question : (1)first please show us detailed size that you need, (2)then let us show drawing to you for your confirmation , (3)after you confirmed the drawing please pay for 30% deposity by TT, (4)we will produce for you ,after we finished we will take live photo for your checking, (5)Please pay for 70%balance payment after you checked the live photos. (6)then we will arrange shipment for you ,we can do FOB or CNF(CFR) for you . (7)You will receive the good at your nearest sea port . (8)You can ask the logistic send the cargo to your home,end. |
