Chain Food Mesh Belt 304 Steel Cord Conveyor Belt Mesh For Furnace

I'm Online Chat Now

Chain Food Mesh Belt 304 Steel Cord Conveyor Belt Mesh For Furnace

Chain Food Mesh Belt 304 Steel Cord Conveyor Belt Mesh For Furnace
Chain Food Mesh Belt 304 Steel Cord Conveyor Belt Mesh For Furnace Chain Food Mesh Belt 304 Steel Cord Conveyor Belt Mesh For Furnace Chain Food Mesh Belt 304 Steel Cord Conveyor Belt Mesh For Furnace

Large Image :  Chain Food Mesh Belt 304 Steel Cord Conveyor Belt Mesh For Furnace

Product Details:
Place of Origin: yangzhou jiangsu china
Brand Name: xinlihua
Payment & Shipping Terms:
Minimum Order Quantity: 5 meters
Price: 10 - 499 Square Meters $19.78, >=500 Square Meters $16.35
Packaging Details: All products are packed in cylindrical shape, length and width are marked.
Payment Terms: T/T
Supply Ability: To be negotiated

Chain Food Mesh Belt 304 Steel Cord Conveyor Belt Mesh For Furnace

Description
Material: Stainless Steel Wire, 304 Market: Europe, Australia, Asia, Afirca Etc, America
Packing: Paper Tube Inside+ Wodden Box +plastic Bag + Applicable Industries: Food & Beverage Factory, Food Shop, Construction Works ,
Place Of Origin: Jiangsu, China Width Or Diameter: Customized
Marketing Type: New Voltage: Other
Core Components: Pressure Vessel Belt Material: Steel Wire
Highlight:

Chain Food Mesh Belt

,

Furnace Food Mesh Belt

,

304 steel cord conveyor belt

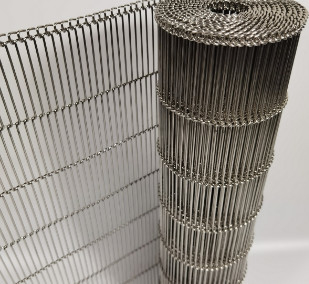

304 Stainless Steel Chain Wire Mesh Metal Conveyor Belt for Furnace

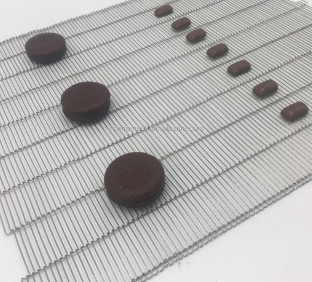

Flat flex conveyor belt is the simplest type among all type of steel mesh conveyor belt. The materials of flat flex conveyor belt are stainless steel, high carbon steel, galvanized steel and other steel wires.
Flat flex conveyor belt is constructed by several loop wires and then be formed different edge. The simple structure make it economical and lightweight. It can help to save cost and reduce downtime.
Company brief

Chain Food Mesh Belt 304 Steel Cord Conveyor Belt Mesh For Furnace 0

So far, the total area of our main plant and branch plant has reached 10000m2.Our conveying equipment and accessories are widely used in food processing, leisure food, baking, heat treatment, forging, casting, ceramics, glass, automobile and other industries.

We are willing to develop together with you, welcome your inquire.

Products Description
Chain Food Mesh Belt 304 Steel Cord Conveyor Belt Mesh For Furnace 1
Material
Stainless steel 302 304 316 /can be customized
Wire diameter
0.9~2.35 mm or be customized
Pitch
4.24~20.32 mm or be customized
Belt width
3" ~14" or be customized
Open area
70%~90%
3 types
1. Single loop edge
2. Double loop edge
3. C-shaped edge
Chain Food Mesh Belt 304 Steel Cord Conveyor Belt Mesh For Furnace 2
Chain Food Mesh Belt 304 Steel Cord Conveyor Belt Mesh For Furnace 3
* Large open area.
* Economical.
* Lightweight.
* High temperature resistance.
* Good air circulation.
* Easy to clean and save maintenance cost.
Chain Food Mesh Belt 304 Steel Cord Conveyor Belt Mesh For Furnace 4
* Durable and long lifespan.
* Different edges for choice.
* Barriers can be added onto the belts.
* Chain link and other driven types.
* Curved rod network belt to suit different machines.
Details Images
Chain Food Mesh Belt 304 Steel Cord Conveyor Belt Mesh For Furnace 5
Chain Food Mesh Belt 304 Steel Cord Conveyor Belt Mesh For Furnace 6



4. other types


Chain Food Mesh Belt 304 Steel Cord Conveyor Belt Mesh For Furnace 7
Chain Food Mesh Belt 304 Steel Cord Conveyor Belt Mesh For Furnace 8
Chain Food Mesh Belt 304 Steel Cord Conveyor Belt Mesh For Furnace 9
Chain Food Mesh Belt 304 Steel Cord Conveyor Belt Mesh For Furnace 10

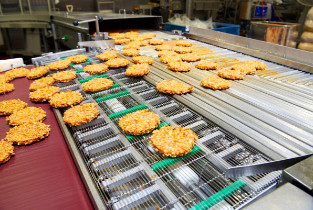

Product Applications
1. Freezing food industry tunnel: designed for all types of vegetables, fish and dairy.
2. Chemical industry such as conveying rubber and plastic products.
3. Cooling and freezing towers.
4. Blanching /washing and treatment of fruits, vegetables, fish and meat.
5. Cooking: pizzas, nuts, chips, snacks, etc.
6. Acting as heat treatment belt or pasteurizing belt , etc.




Chain Food Mesh Belt 304 Steel Cord Conveyor Belt Mesh For Furnace 11



Pro Quality of Stainless Steel Chain Wire Mesh Belt Cookies Conveyor Belt :



Stainless steel wire mesh conveyor belt is most commonly used wire mesh belt for conveyor. Conveyor belt is used in many food processing applications and also in some industrial range, such as in glass, ceramic and metal working. We can customized as per the customer's request.

Stainless steel mesh belt conveyor aslo called stainless steel conveyor, stainless steel mesh belt, stainless steel conveyors, stainless steel belts, stainless steel Mobility with metal spiral mesh belt, metal belt turn.



Material:High quality stainless steel

Type:Herringbone mesh belt B-shaped belt, diamond belt, horseshoe belt (long urban belt), chain conveyors, belt-shaped glasses, chain plate belt, ball-type mesh belt, chain conveyor metal hook , punching metal conveyor belts, etc.



Chain Food Mesh Belt 304 Steel Cord Conveyor Belt Mesh For Furnace 12



Related Products

Chain Food Mesh Belt 304 Steel Cord Conveyor Belt Mesh For Furnace 13



Chain Food Mesh Belt 304 Steel Cord Conveyor Belt Mesh For Furnace 14

Product LineChain Food Mesh Belt 304 Steel Cord Conveyor Belt Mesh For Furnace 15

Packing & Delivery
Chain Food Mesh Belt 304 Steel Cord Conveyor Belt Mesh For Furnace 16
Chain Food Mesh Belt 304 Steel Cord Conveyor Belt Mesh For Furnace 17
Chain Food Mesh Belt 304 Steel Cord Conveyor Belt Mesh For Furnace 18
FAQ

Chain Food Mesh Belt 304 Steel Cord Conveyor Belt Mesh For Furnace 19



After-sale service process:.

1. The contact must be numbered and kept in the user's file.

2. To assist customers in designing their product and send free sample.

3. To direct installation equipment free of charge and will be responsible commissioning

4. The company shall make regular inspection and maintenance of user’s equipment

After-sale service guaranty:

1. The host machine of the equipment enjoy 1 years free warranty and lifetime maintenance.

2. The spare parts of the equipment are made by well-known manufacturers in the trade , ensuing the servuce life of the spare parts .

Packing:

1. All products are packed in cylindrical shape, length and width are marked.
2. Standard plywood wooden box production surface avoid broken.
3. According to customer requirements brush marks.

Q1: Can you arrange the shipping to our country?
A: Yes, let me know which port you prefer in our country, we can arrange the shipping for you.
Q2: Do you offer customized product service?
A: Yes, customize product is available in our factory. Send your design pictures to us, we talk about it with our professional design
Q3: Are you trading company or factory?
A: We are factory. Our factory located in YangZhou city . Welcome to visit us. We are always ready for you. I firmly believe you will understand our product better after visiting.
Q4: how to buy your products?
A: this is a good question :
(1)first please show us detailed size that you need,
(2)then let us show drawing to you for your confirmation ,
(3)after you confirmed the drawing please pay for 30% deposity by TT,
(4)we will produce for you ,after we finished we will take live photo for your checking,
(5)Please pay for 70%balance payment after you checked the live photos.
(6)then we will arrange shipment for you ,we can do FOB or CNF(CFR) for you .
(7)You will receive the good at your nearest sea port .
(8)You can ask the logistic send the cargo to your home,end.



Our Services

After-sale service process:.

1. The contact must be numbered and kept in the user's file.

2. To assist customers in designing their product and send free sample.

3. To direct installation equipment free of charge and will be responsible commissioning

4. The company shall make regular inspection and maintenance of user’s equipment





Related Products

Click The Picture Find More Different Type Mesh Belt , There  Always One Type That Suits Your Needs

Chain Food Mesh Belt 304 Steel Cord Conveyor Belt Mesh For Furnace 20
