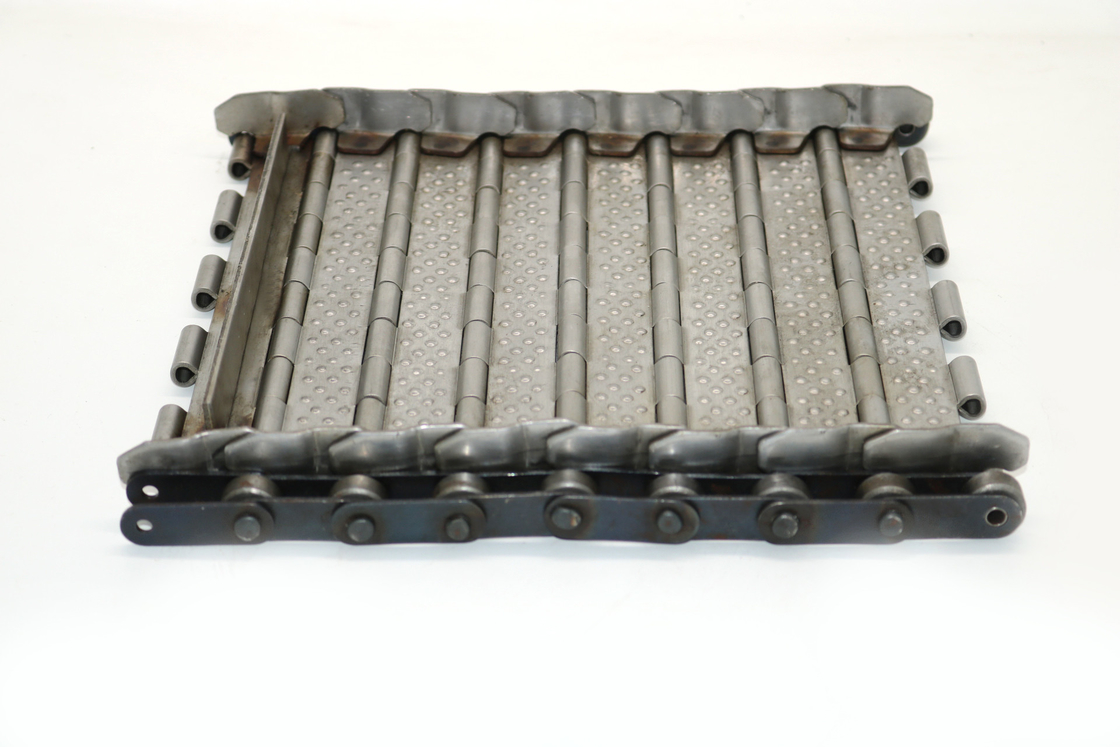

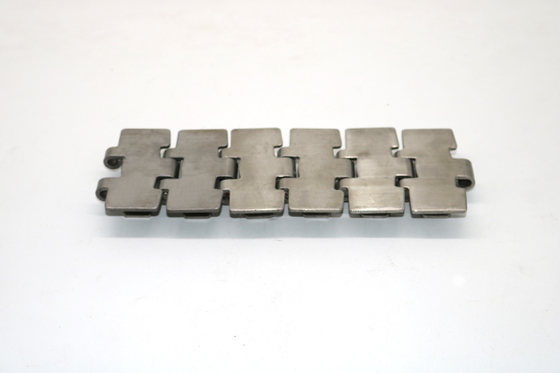

Driven Roller Wire Mesh Conveyor Belt SS Slat Chain With Attachment

Yangzhou Xinlihua Mesh Belt Factory manufacture different type stainless steel wire mesh belt.

The different kind of belts include Balanced Belts, Double Balanced belts, Gratex Belts, Duplex Belts, Compound Balanced Belts, Flat Wire Belts and Flat Flex Belts. These belts are specially manufactured in spring steel, galvanized, stainless steel material etc. The size of the belt can be customized within the maximum range possible, kindly refer to specifications below.

Typical Applications:

In food processing, these belts are used in washing, baking, de-watering, blanching, cooling, freezing, pasteurizing and de-palletizing.

In glass & ceramics, this finds wide use in firing decorating, enameling and annealing, and for curing fibre glass. In electronics, this can be used for glass-to-metal sealing, thick-film firing and drying of printed circuit boards. In metal working, the range is from general conveying to heat-treating, quenching, calcining, annealing and related processes.

Conveyor belts are made by wire or metal strap, in different linked shapes and form a flat weave, load bearing, flexible. The size and thickness is available as per specification.

according to diffferent hole type, the wire mesh belt are divided into below type:



1. Flat-Flex conveyor belts offer numerous benefits that increase productivity, help contain costs and improve your overall product quality, including:

Feature :

1. The largest proportion of open-mesh area available- up to 86%
2. Easy to clean, clean-in-place design
3. No-slip, positive drive
4. Very low belt mass
5. Smallest diameter end rolls and drive rolls
6. Positive driven for accurate tracking
7. USDA Accepted

Material: the standard is 304 stainless steel. Other materials available include: 302 stainless steel , 310s stainless steel , 316 stainless steel, various carbon steel, and high temperature performance materials.






Flat-Flex is an available option for most Flat-Flex belts. This technology eliminates the possibility of the belt edge catching and tangling.

reference flat flex belt speicification

2.BALANCED WEAVE BELT
The predominant choice in the conveyor belt industry. It is our most versatile belt used in a variety industries. Balanced weave belts are a series of left and right hand wire mesh spirals joined by a connecting rod or crimped rod. These belts can be made from different alloys such as 304ss and 316ss. Some balanced weave belts are positively driven by a sprocket or a pinroll. Balanced weave belts can be manufactured to match new or existing pinrolls and are available in a wide range of specifications


3.Stainless Steel Herringbone Conveyor Belt

Stainless Steel Herringbone Conveyor Belt is also called compound balanced belt, it is a variation of balanced weave belt, right hand and left hand weave forms a very dense and smooth belt with most rod straight and some crimped. The belt is perfect to convey small products because of high dense mesh, such as nuts, bolts, screw, nail, cookies, chemical grain etc.

Features:

1. Positive drive, smooth running;

2. Little pressure on wire mesh fabric;

3. Stands temperature from -55 oC to 1150 oC;

4. Side guard and flight are available;

5.Material:carbon steel, galvanized steel, stainless steel, weathering steel, high temperature steel etc.



other type wire mesh belt :
