20cm-200cm Stainless Steel Conveyor Belt Wall Cladding Metal Mesh

Large Image : 20cm-200cm Stainless Steel Conveyor Belt Wall Cladding Metal Mesh

Product Details:

Place of Origin:	yangzhou jiangsu china
Brand Name:	xinlihua

Payment & Shipping Terms:

Minimum Order Quantity:	5 meters
Price:	10 - 79 Meters $81.10, >=80 Meters $59.20
Packaging Details:	All products are packed in cylindrical shape, length and width are marked.
Payment Terms:	T/T
Supply Ability:	To be negotiated

Contact Now

20cm-200cm Stainless Steel Conveyor Belt Wall Cladding Metal Mesh

Description

Material:	Stainless Steel Wire, 304	Market:	Europe, Australia, Asia, Afirca Etc, America
Packing:	Paper Tube Inside+ Wodden Box +plastic Bag +	Applicable Industries:	Food & Beverage Factory, Food Shop, Construction Works ,
Place Of Origin:	Jiangsu, China	Width Or Diameter:	Customized
Marketing Type:	New	Voltage:	Other
Core Components:	Pressure Vessel	Belt Material:	Steel Wire
Highlight:	20cm Stainless Steel Conveyor Belt , 200cm Stainless Steel Conveyor Belt , 200cm cladding metal mesh

Product Description

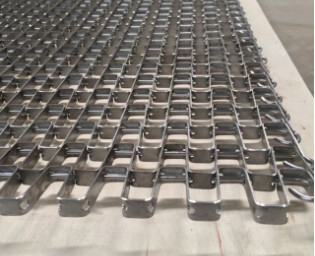

Long use life Metal Honeycomb mesh conveyor belts flex weave wire belt in Laos

The honeycomb belt is an open grid belt made of flat wire strips connected to each other by straight rods and pulled by specific sprockets. This belt is suitable for cleaning processes, cooking, cooling, products transfers, drying material and water treatment.

Specifications as below:

Material: 304 316 Stainless steel sheet
A: Overall belt width: 20cm-200cm
B: Cross rod pitch: 25mm etc
C: Cross rod diameter: 3mm
D: Up opening width: 10mm etc
E: Down opening width: 15mm etc
F: Flat strip thickness: 1.2mm, Flat strip height: 10mm

Detailed Images

Excellent strength to weight ratio but with maximum flexibility to prevents belt from deforming under heavy loads.

High temperature resistance, non-slip, anti-corrosion, anti-rust, resistant to acid and alkaline.

Complying with food safety standards such as FDA, GMP and others up your request.

Large opening area with good air circulation.

Side and center baffles can be added to the conveyor belt to prevent the products from falling down to the ground.

Easy to clean, assemble and disassemble, save maintenance cost, durable and long lifespan.

FAQRelated Products

20cm-200cm Stainless Steel Conveyor Belt Wall Cladding Metal Mesh 0

20cm-200cm Stainless Steel Conveyor Belt Wall Cladding Metal Mesh 1

Product Line 20cm-200cm Stainless Steel Conveyor Belt Wall Cladding Metal Mesh 2

Packing & Delivery

20cm-200cm Stainless Steel Conveyor Belt Wall Cladding Metal Mesh 6

After-sale service process:.

1. The contact must be numbered and kept in the user's file.

2. To assist customers in designing their product and send free sample.

3. To direct installation equipment free of charge and will be responsible commissioning

4. The company shall make regular inspection and maintenance of user’s equipment

After-sale service guaranty:

1. The host machine of the equipment enjoy 1 years free warranty and lifetime maintenance.

2. The spare parts of the equipment are made by well-known manufacturers in the trade , ensuing the servuce life of the spare parts .

Packing:

1. All products are packed in cylindrical shape, length and width are marked.
2. Standard plywood wooden box production surface avoid broken.
3. According to customer requirements brush marks.

Q1: Can you arrange the shipping to our country?
A: Yes, let me know which port you prefer in our country, we can arrange the shipping for you.

Q2: Do you offer customized product service?
A: Yes, customize product is available in our factory. Send your design pictures to us, we talk about it with our professional design

Q3: Are you trading company or factory?
A: We are factory. Our factory located in YangZhou city . Welcome to visit us. We are always ready for you. I firmly believe you will understand our product better after visiting.

Q4: how to buy your products?
A: this is a good question :
(1)first please show us detailed size that you need,
(2)then let us show drawing to you for your confirmation ,
(3)after you confirmed the drawing please pay for 30% deposity by TT,
(4)we will produce for you ,after we finished we will take live photo for your checking,
(5)Please pay for 70%balance payment after you checked the live photos.
(6)then we will arrange shipment for you ,we can do FOB or CNF(CFR) for you .
(7)You will receive the good at your nearest sea port .
(8)You can ask the logistic send the cargo to your home,end.
